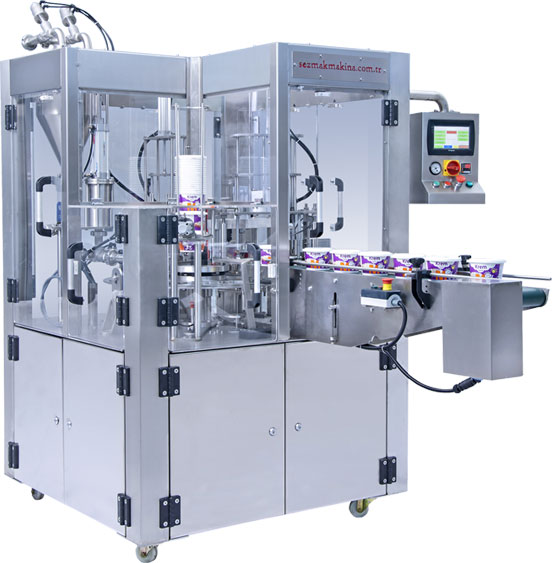

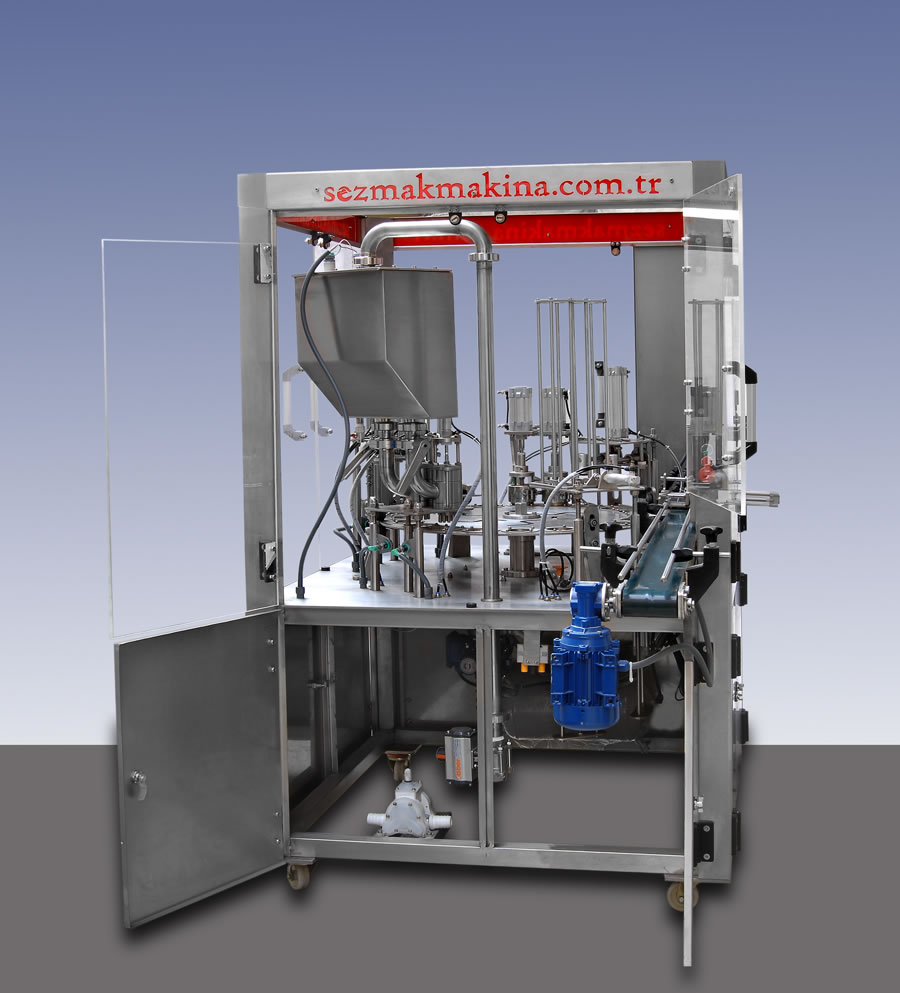

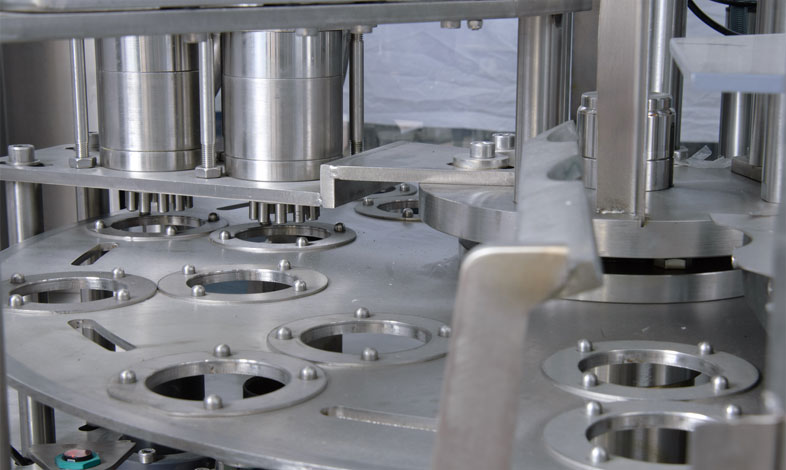

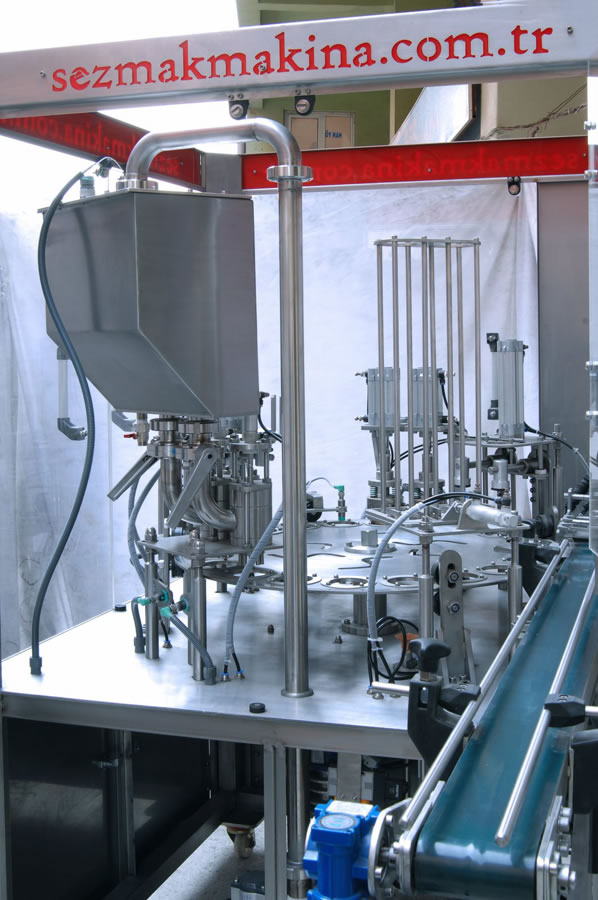

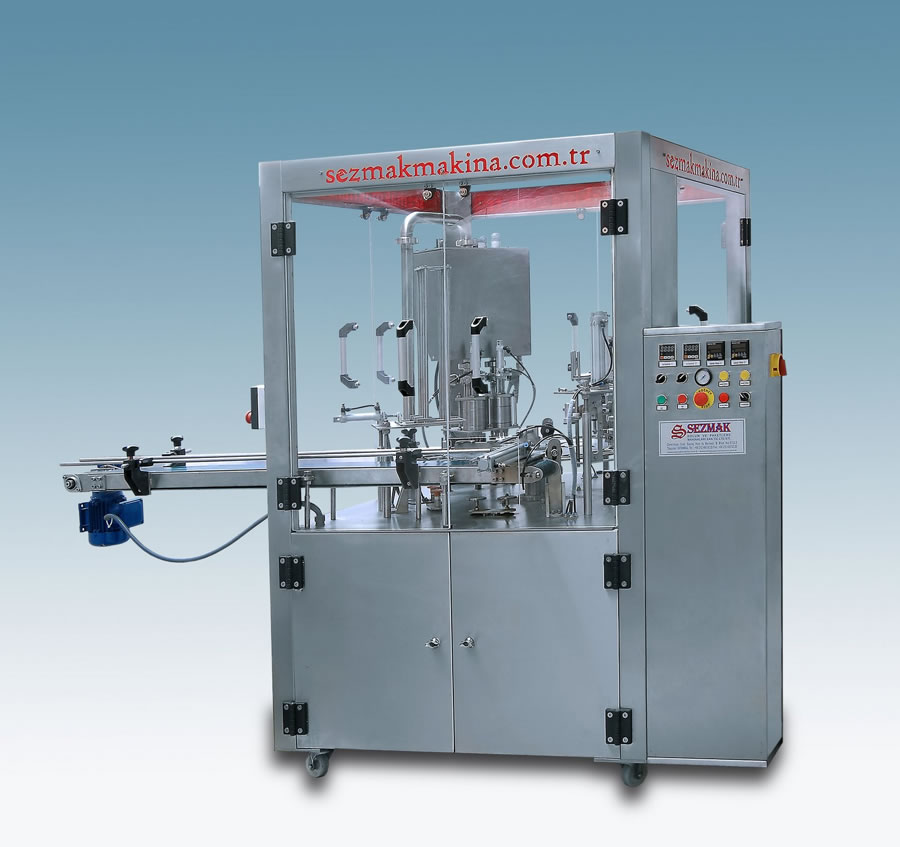

Depending on the motor and reducer, our machine takes its movement from the mechanical gearbox and turns the rotary table on it. The cup is automatically lowered from the slide plate in pairs. Filling ; When it sees the glass in the photocell control system, it automatically fills the desired weight in pairs. The ready-made aluminum lid is automatically placed on the glass in pairs by means of vacuum and the lids are adhered to the bowl mouth under the sealing head. The date is entered under the date setting unit. The finished products are taken on the conveyor belt with the help of the lifting arm.
CAPACITY 3000 N/H
CAP DIMENSIONS MIN Q 40 - MAX 160
FILLING WEIGHT MIN 10 GR - MAX 1000 GR
MACHINE DIMENSIONS 120*120*175
MACHINE WEIGHT 450 KG
MACHINE VOLTAGE 380 W -(1 - 1.5 KW CONSUMPTION)
AIR PRESSURE MIN: 6 BAR MAX: 8 BAR
MATERIAL 304 QUALITY STAINLESS
CUP LOWER
FILLING
DO NOT COVER

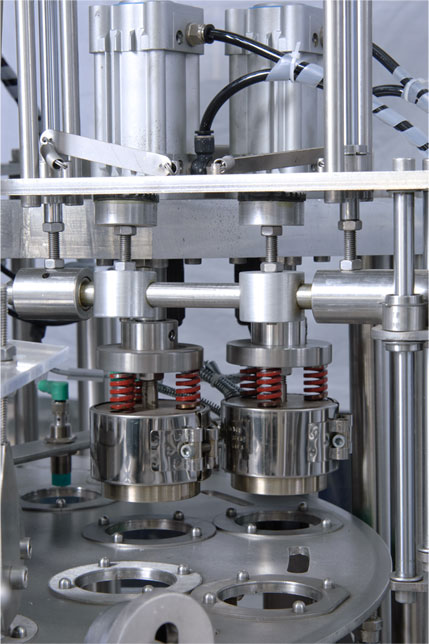

BONDING
DATE DATE
ULTRAVIOLET LAMP ( UV )
HEPA FILTER
CONVEYOR OUTPUT
Depending on the motor and reducer, our machine takes its movement from the mechanical gearbox and turns the rotary table on it. The cup is automatically lowered from the slide plate in pairs. Filling ; When it sees the glass in the photocell control system, it automatically fills the desired weight in pairs. The ready-made aluminum lid is automatically placed on the glass in pairs by means of vacuum and the lids are adhered to the bowl mouth under the sealing head. The date is entered under the date setting unit. The finished products are taken on the conveyor belt with the help of the lifting arm.
